50 tons live bottom dump trailer with conveyor belt

3 axles live bottom tipper trailer, live floor trailers offer quick unloading without tipping or dumping when hauling loose material such as asphalt, grain, gravel, soil, construction debris, or a number of different types of materials. A live floor trailer (also commonly referred to as a walking-floor trailer, live-bottom trailer, or self-unloading trailer) often uses a conveyor belt or some other type of system run by hydraulics that slides the floor rearward to push or slide the load out of the trailer at a controlled pace.

The live floor trailers have strong floors specially designed for fast, efficient unloading. Live bottom trailers for sale from Qingte Special Vehicles Trailer use conveyors built on a hardened rail system, with I-beam construction and rounded tubs for more evenly distributed loads that won’t shift going around corners.


Product Details

Type

 3 axles 65cbm conveyor belts self-unloading live bottom trailer

Weight:




Tare Weight

9.6T


Payload

50 tons , 65cbm


Axle Weight Load

3 x 13T FUWA/ BPW axle

Specification:



Suspension

Spring suspensions


King Pin

90# traction pin


Dimensions  (LxWxH)

13000×2550×3700mm(Outside)
12800×2300×2200mm(Inner)


Thickness of body

Bottom 3mm, side 2mm


Rim

9.0-22.5  12 pieces


Steel Spring

10 Pcs

Tire:




Tire specs.

12R22.5 Tubeless tyre.


Number of Tire

12 pieces


Spare Tire Carrier

 2 pieces

Frame:

Main frame is height 500mm. Q345


Frame Beam

Upper/ lower plate 12/14mm,middle 8mm.

Brake:




Brake

Kemi Brand of China


Brake Chamber

Two double and two single chamber

Electrical:




Voltage

24V


Receptacle

7 ways(7 wire harness)

Light color:



Side marker lamp

Orange


Rear lamp

Red


Turn signal lamp

Orange

Landing Leg support:

 JOST/ HOLLAND/ FUWA

Unloading

Type

 Rear Door Opening

 By 2 hydraulic jack. Each side 1 set.


 Unloading type

 By conveyor belts.


 Unloading time

 5-10 minutes(Depend on the medium)

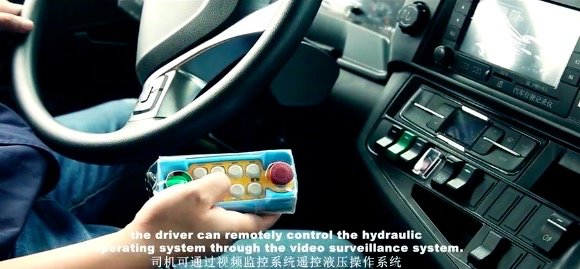

The driver could control the hydraulic operating system in the cabin.

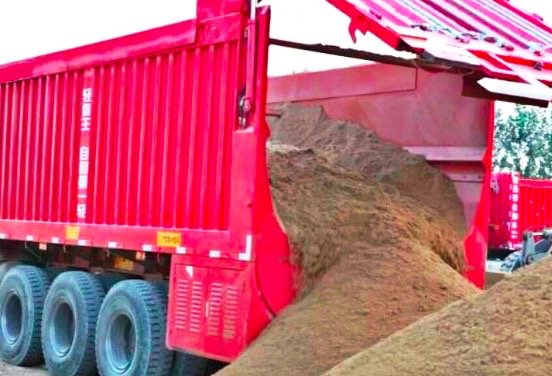

Unloading the sands.
